PowerLogic™ PM8000 Power Quality Meters

Discover PowerLogic PM8000 power quality meters



Improve power reliability
Designed to monitor and analyze power quality and energy usage in commercial and industrial applications, PowerLogic PM8000 is a high-performance power quality meter with waveform capture, harmonic analysis, and compliance monitoring to provide accurate and reliable measurements. With patented ION technology embedded in the meter, it delivers pre-configured functionality and is easily customizable.







Benefits of PowerLogic PM8000 power quality meters



• True reliability
  Certified by independent third-party labs and compliant with the latest international standards for power quality monitoring and revenue billing (IEC 61000-4-30, IEEE 519, EN 50160).
• Tangible results
  Delivers insightful, easy-to-understand data from key metering points throughout your power infrastructure to improve efficiency and decrease downtime.
• Wide versatility
  End users and system integrators can create custom applications in the modular block-oriented programming architecture to adapt devices and evolve to changing business realities.

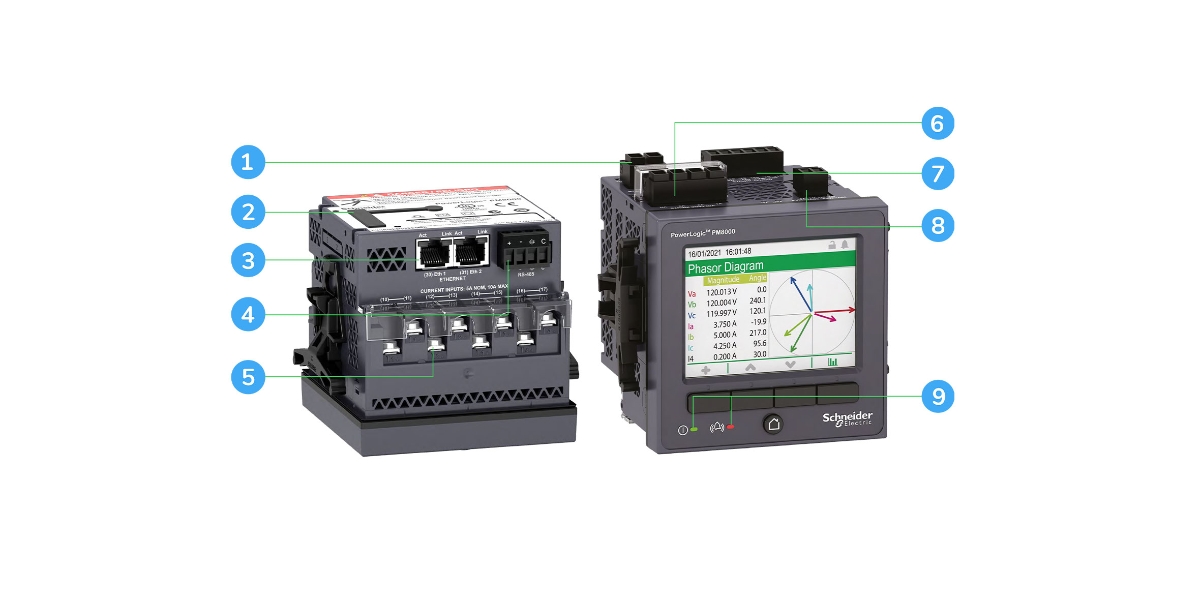

Features

1. Control power : Auxiliary power is available in two options: standard supply or low-voltage DC supply.
2. Expansion ports : Connect to four modules to support digital I/O, analog I/O, or additional communication modules such as fiber ethernet.
3. Dual port ethernet : Enable configuration changes and extract data to interpret and visualize the information provided by the meter.
4. Serial port : Make quick configuration changes and retrieving energy data via the RS-485 Serial communication port.
5. Current inputs : Measure power, energy, and the instantaneous values.
6. Voltage input : Measure power, energy, and the instantaneous values.
7. Digital inputs : Monitor the status of switches or pulse count for totalization applications.
8. Digital outputs : For switching applications, demand synchronization, and energy pulsing.
9. Alarm/status LEDs : Notifications for active alarm conditions.



Perfect for your business



• Cloud and service providers
  Minimize the impact of power disruptions to keep services available to customers by identifying and mitigating power quality issues that cause equipment failure and downtime.
• Industry
  Maintain reliable operations, optimize energy usage, reduce maintenance costs, meet regulatory compliance, and enhance productivity.
• Healthcare
  Ensure reliable and continuous power supply, prevent equipment failures, and maintain optimal conditions for patient care and safety.
