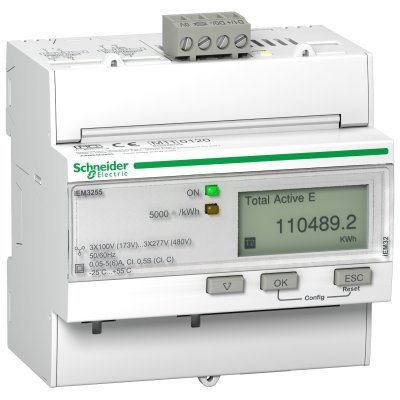

Acti9 iEM3000 Energy Meters

3-phase DIN rail energy meters for energy management Ideal for commercial buildings, industry, data centers, electric vehicle charging and infrastructure environments, these efficient, feature-rich smart DIN rail energy meters enable energy and cost management applications.

รายละเอียดสินค้า

Discover Acti9 iEM3000 energy meters

Feature-rich, flexible energy meter
More than a stand-alone kWh meter, Acti9 iEM3000 energy meters provide extensive real-time measurements and insights into energy consumption to enable cost management applications for buildings and infrastructure. Native support for multiple protocols makes integration with existing networks easy, while multiple tariffs provide flexibility to match utility billing structures for bill verification.





Benefits

  • Versatile
    Easily integrates into any network to support energy management for buildings and infrastructure, including electric vehicles.
  • Manage costs
    Collects and analyzes energy consumption data so you can better understand energy usage, reduce costs, and bill tenants.
  • Precise monitoring
    Offers Class 1.0 accuracy for active energy metering and complies with major regulatory requirements for billing.
  • Optimize operations
    Delivers insights for proactive maintenance schedules to avoid system issues and reduce utility penalties.



Features



Integrations
  • Native support for Modbus RS-485, BACnet, M-bus, and LonWorks protocols.
  • Compatible with the Acti9 communication system.
  • Measuring Instruments Directive (MID) compliant.
Real-time monitoring
  • Real-time measurements for voltage, current, power, and power factor offer insight into energy usage.
  • Collects data for WAGES (water, air, gas, electricity, and steam) monitoring.
  • Differentiate energy consumption with four-quadrant metering.
  • Use multiple tariffs to manage utility costs and verify bills with up to four-time slots.
Secure, accessible data
  • Anti-tamper sealing parts for metering connections (voltage, current, DI/DO) help ensure data security and integrity.
  • Internal clock saves the date and time of the last reset to verify the start of measurement campaigns and detects when the clock has been altered.
Easy display and mount
  • Bottom-to-bottom direct connection with multiple sensor connection options, including direct, 1A/5A CT, 0.333V/1.0V CT, and Rogowski coil.
  • Separate power and communication connections to reduce the risk of wiring errors.
  • Two clip DIN rail attachments for greater stability and vertical installation.
