PowerLogic™ Current Transformers

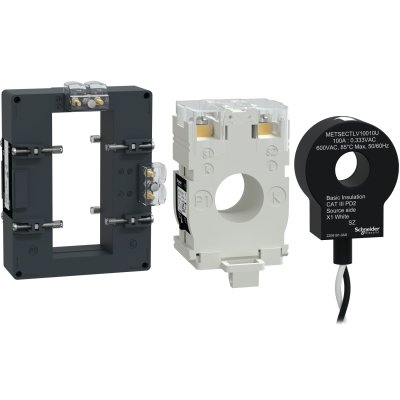

Low-voltage current transformers For retrofit or greenfield, this range of tropicalized current transformers includes split-core, solid-core, and Rogowski coils, with secondary output of 5 Amps or 0.333V proportional to primary current for reliable metering.

รายละเอียดสินค้า

Discover PowerLogic Current Transformers



Enhance meter efficiency and safety
Compatible with our portfolio of digital and analog power and energy meters, our full range of low-voltage current transformers are available in split-core, solid-core, and Rogowski coils.

Monitor cables and busbars with wide-ranging primary currents to help ensure reliable measurements that meet the latest standards for safety, including CE, UKCA, UL 2808, and IEC 61869-1&2.



Benefits of PowerLogic Current Transformers



  • Adaptable
    Includes everything you need for an easy installation in both retrofit and greenfield applications.
  • Accurate
    Ensures reliable monitoring of your panel board with accurate meter measurements between 0.5% and 2.0.
  • Reliable
    Offers wide-ranging primary currents that meet the latest safety standards to help ensure reliable measurements.
  • Sustainable
    Ensures energy efficiency, durability, and recyclability as a Green Premium label product.



Features



Split-core current transformers
  • Fit 18.4 x 19 to 44 mm for 100 to 1000Amp cables
  • Fit busbars from 23 x 33 to 85 x 165 mm
  • Tropicalized for -25 °C to +60 °C, relative humidity > 95%
Solid-core current transformers
  • Fit 21 to 40 mm for 400 to 800Amps cables
  • Fit busbars from 10 x 32 to 55 x 165 mm
  • Tropicalized for -25 °C to +60 °C, relative humidity > 95%
Rogowski coils
  • Fit 96 to 287 mm for up to 5000Amps
  • Address core length of 300 to 900 mm
  • Tropicalized for -25 °C to +60 °C, relative humidity > 95%
