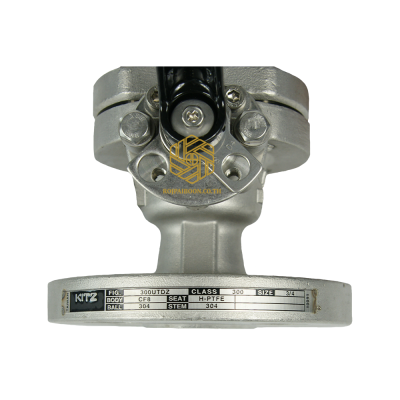

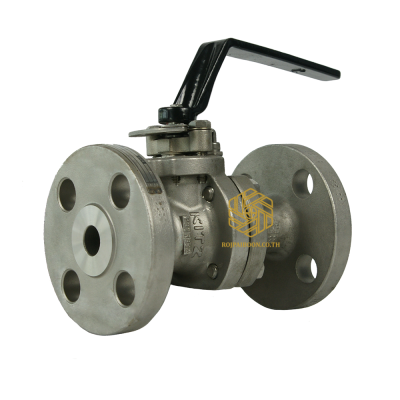

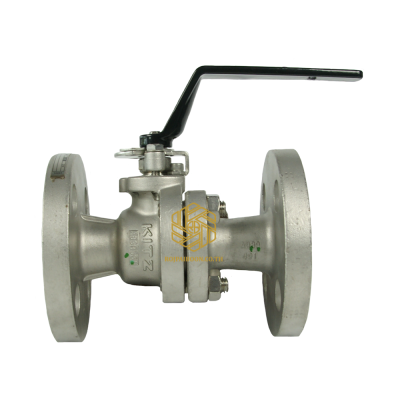

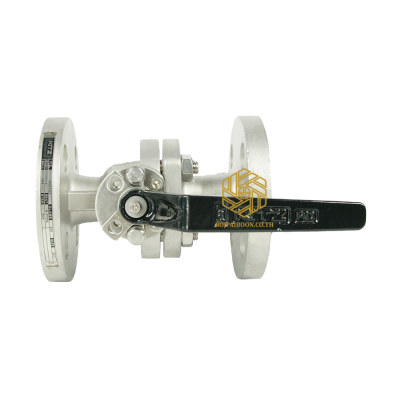

300UTDZ/300UTDZM/300UTDZM-FS
CLASS 300 CAST STAINLESS STEEL BALL VALVE FLANGED ENDS,ANTI-STATIC DEVICE,FULL BORE,CONFORM TO ISO5211,END TO END:ASME B16.10 CLASS 300,END CONNECTION:ASME B16.5 CLASS 300,WALL THICKNESS:ASME B16.34 CLASS 300,TEST STANDARD:API 598
āđāļāļĢāļāļāđ :āļāļīāļāļāđ
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
TYPE : BALL VALVES
FIGURE : 300UTDZ/300UTDZM/300UTDZM-FS
PRESSURE : CLASS 300
END CONNECTION : ASME B16.5

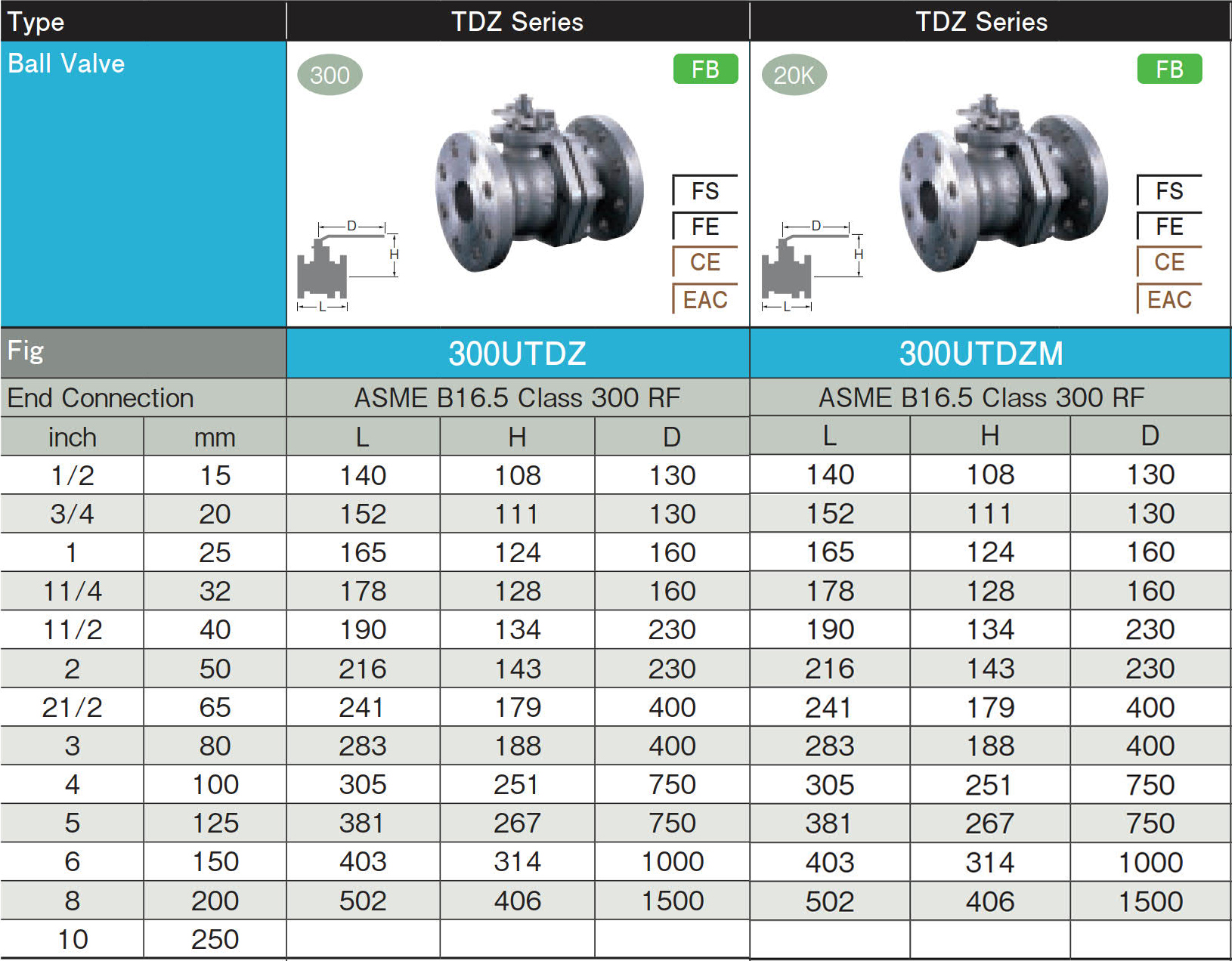

SIZE : 1/2 - 8
BODY : CF8 / CF8M / CF8M
STEM : TP304 / TP316 / TP316
BALL : TP304,CF8 / TP316,CF8M / TP316,CF8M
BALL SEAT: Hypatite PTFE / Hypatite PTFE / Flexible Graphite
GLAND PACKING : PTFE
*300UTDZ/300UTDZM Full Bore, Split Body, Blowout-proof Stem Working Pressure (Room Temp.) 720 psi.
*300UTDZM-FS Full Bore, Split Body, Blowout-proof Stem, Fire Safe API 607 Working Pressure (Room Temp.) 720 psi.
