20UTDZ/20UTDZM
20K CAST STAINLESS STEEL BALL VALVE FLANGED ENDS,ANTI-STATIC DEVICE,FULL BORE,CONFORM TO ISO5211,END TO END:ASME B16.10 CLASS 300,END CONNECTION:JIS B2220 20K,WALL THICKNESS:ASME B16.34 CLASS 300,TEST STANDARD:KITZ STANDARD.
āđāļāļĢāļāļāđ :āļāļīāļāļāđ
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
TYPE : BALL VALVES

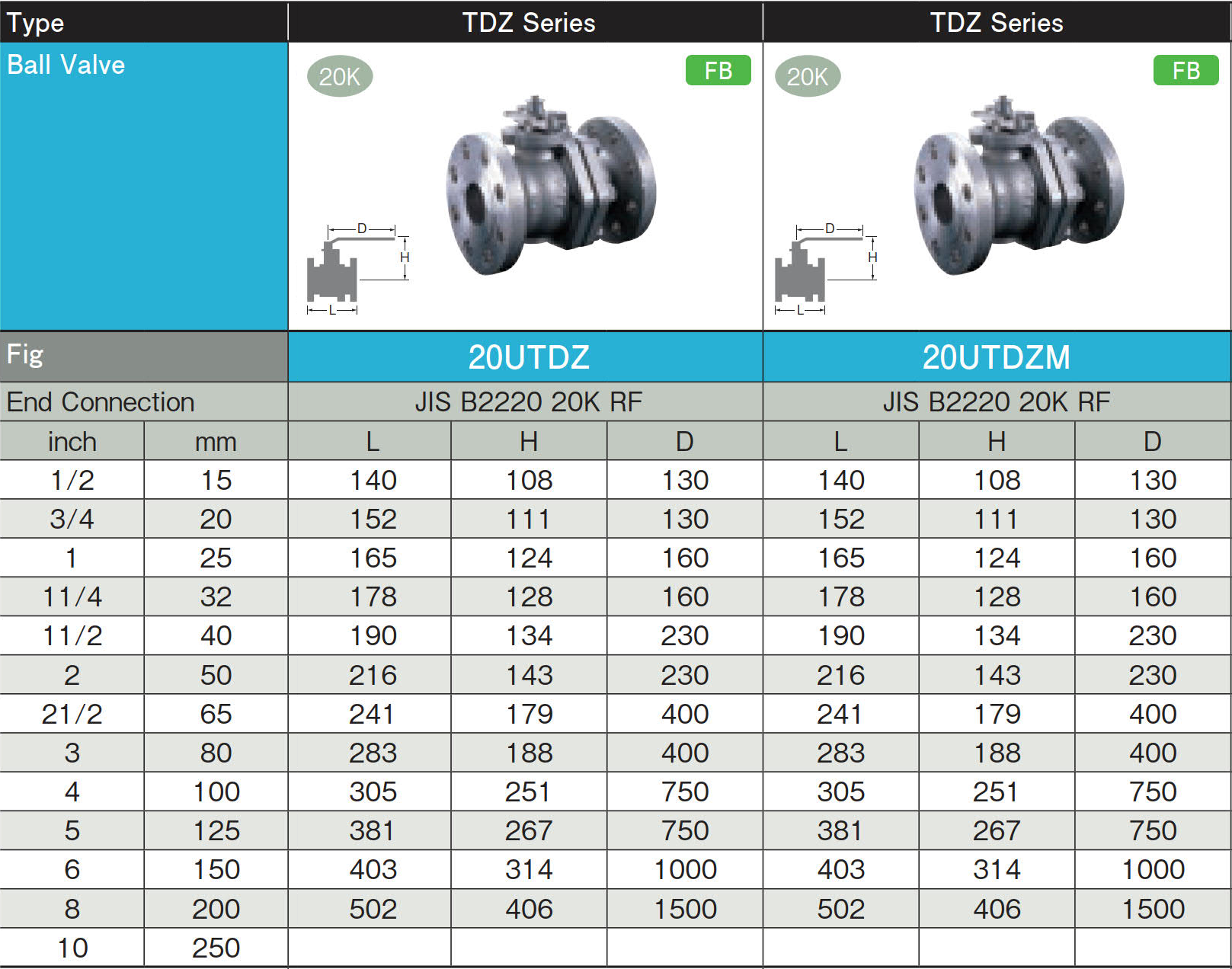

FIGURE : 20UTDZ/20UTDZM
PRESSURE : JIS 20K
END CONNECTION : JIS B2220
SIZE : 1/2 - 8
BODY : SCS13A / SCS14A
STEM : SUS304 / SUS316
BALL : SUS304,SCS13A / SUS316, SCS14A
BALL SEAT: Hypatite PTFE
GLAND PACKING : PTFE
Full Bore, Split Body, Blowout-proof Stem
Working Pressure (Room Temp.) 490 psi
