EVH5A22N2S

Charging station, Schneider Charge, 1P+N/3P+N, 1xT2S, 7.4/11/22kW, 16/32A

รายละเอียดสินค้า

Description

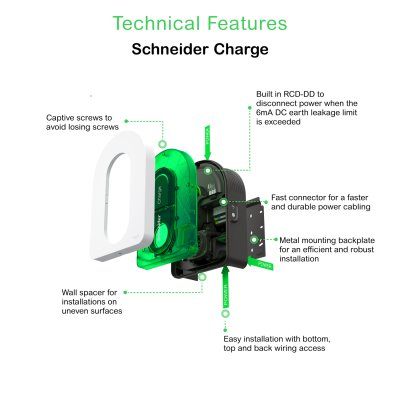

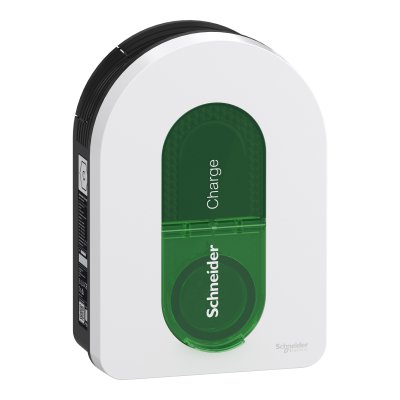

This Schneider Charge product is a wall-mounted charging station for all electrical vehicles compliant with IEC61851-1 standard. The IP degree of protection is IP55. The IK degree of protection is IK10. The operating temperature is between -30°C and 45°C. The output type is a T2S socket-outlet, fixed on the front face of the station. The nominal output power is 22kW. It is supplied in single-phase (1P+N) or three phases (3P+N). The rated charging currents are 16A/32A under 230VAC/400VAC at 50Hz/60Hz. It can be used with a TN-S, TT or IT earthing system. The charging station is easy to install (no special tools required). It is recommended for private use at home, installed in the garage or on a wall externally. The dimensions are (W) 244mm x (H) 352mm x (D) 117mm. Its product weight is 3.2kg. Its color is white (RAL 9003) and green. It is fitted with a built-in protection against residual direct current (RDC-DD as Residual Direct Current Detecting Device). There is no access control to use the charging station for loading an electrical vehicle. One LED is changing color between red, green and blue in order to indicate the loading status directly on the charging station. This one allows to adjust in real time the maximum power allocated to the charging electric vehicle, according to the consumption of the rest of loads in the house and adapt the load according to Off Peak/Peak hours sent by TIC. The charging station is connected with Wiser by the Schneider ElectricTM mobile application for residential energy management. It easily starts, monitors, and controls the charging experience remotely. The OCPP 1.6 communication protocol can be used to connect to the supervision device/third party cloud. It can also be connected to Internet home router, either through Wi-Fi or RJ45 Ethernet cable.



Specifications



   Main
RangeSchneider Charge
product nameSchneider Charge
Product or component typeCharging station
Poles description1P + N
3P + N
Mounting modeWall-mounted
Max power7.4 kW 32 A
11 kW 16 A
22 kW 32 A
Number of charge point1
Connection to the vehicleSocket-outlet T2 with shutter front face


   Complementary
rated supply voltage230...240 V AC 50...60 Hz +/- 10 %
400 V AC 50...60 Hz +/- 10 %
Earthing systemIT 230
TT
TN-S
Number of inputs1
Input typeDry contact for dynamic energy management
Local signallingRed, green and blue 1 LED, function: status indication
Protection typeEarth-leakage protection
Height352 mm
Width244 mm
Depth117 mm
Net weight3.2 kg
ColourWhite/green
StandardsEN 61851
IEC 61851-1
EN 61000-6-1
EN 61000-6-3
Communication network type
Wi-Fi
Wireless
Ethernet
Communication port protocol
OCPP 1.6, for connection to the Schneider Electric Wiser ap
   Environment
IP degree of protectionIP55 conforming to EN/IEC 60529
IK degree of protectionIK10
Ambient air temperature for operation-30...45 °C
Ambient air temperature for storage-40...85 °C
Relative humidity5...95 %
Operating altitude0...2000 m
   Packing Units
Unit Type of Package 1PCE
Number of Units in Package 1 1
Package 1 Height22.500 cm
Package 1 Width29.000 cm
Package 1 Length39.500 cm
Package 1 Weight4.708 kg
Unit Type of Package 2P12
Number of Units in Package 2
32
Package 2 Height104.000 cm
Package 2 Width80.000 cm
Package 2 Length120.000 cm
Package 2 Weight164.000 kg
