SpaceLogic™ Touchscreen Room Controller

Simplicity meets sophistication
Bridging the gap between the simplicity of stand-alone thermostats and the performance of DDC (Direct Digital Control) systems, SpaceLogic Touchscreen Room Controllers are the perfect balance of intuitive operations and sophisticated design.

Perfect for a wide variety of facilities, our all-in-one room controllers offer simple installation and commissioning across rooftop units, fan coil units, terminal units, and heat pump applications.

Benefits and features

Flexible
Integrates into any new or existing building with easy installation and commissioning, along with the ability to modify and customize control sequences for maximum efficiency.

Intuitive
Highly customizable, user-friendly interface with different themes, languages, buttons, and standby images to deliver a unique and effortless user experience.

Hyper-efficient
Delivers energy savings, occupant comfort, and space optimization thanks to native application-specific control sequences, PID algorithms, occupancy detection, and scheduling.

Explore the SpaceLogic Touchscreen Room Controller

• Easy installation Reuse existing wiring or communicate wirelessly* to sensors and gateways for a more efficient and cost-effective installation.
• Precise control Up to 16 built-in I/O ports and customizable or native control sequences for precise temperature control.
• Customization Easily customizable for any setting and user. Blend seamlessly into any décor with two classic color options, themes, buttons and orientation*, while delivering an intuitive user interface with easy-to-read text and clear icons.
• Powerful integration Enables connectable integration with different wired/wireless protocols. With Zigbee wireless support*, several wireless sensors are available in the portfolio covering temperature, humidity, occupancy, and CO2 level*. This allows to tackle different applications in new and existing buildings.
• Simple commissioning Commission directly through the controller's user interface. No need for software or other tools.
• Applications Low/mixed voltage fan coil units, line voltage fan coil units, zone control, rooftop units, heat pumps, indoor air quality, variable air volume (VAV) units.

1.Glass cover : Single sheet of glass across the front with no plastic fascia.
2.RGB LED backwash : Customizable for different applications (optional).

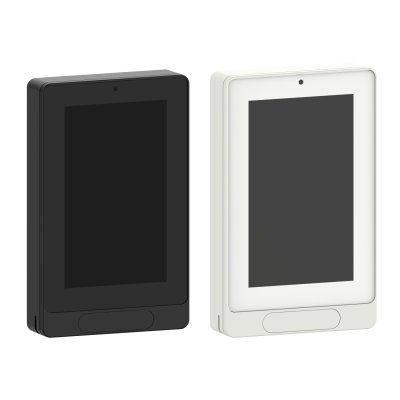

3.Color options : Black and white casing versions with customizable themes.
4.Built-in sensing : For PIR-based motion detection, light, temperature and humidity measurement.
5.Wireless support : Optional Wi-Fi or Zigbee support.
6.Open protocols support : Standard Bacnet MS/TP and Modbus RTU support.
7.Superior touchscreen : Smooth experience with seamless swiping and scrolling through the 4.3 capacitive 226 PPI (480x800) screen.
8.Customizable UI : Customizable buttons, setpoint options, standby image, and data parameters are supported in 22 languages.





 DOWNLOAD :
