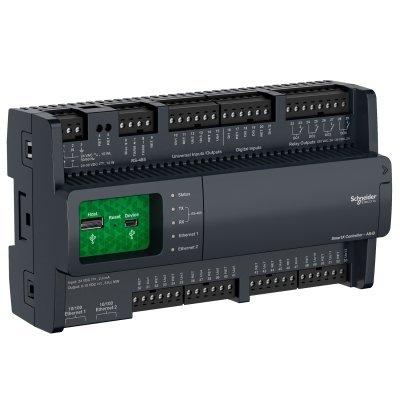

SpaceLogic™ AS-B Controller

The SpaceLogic AS-B Controller offers the following features:

• Flexible on-board universal I/O configurations & built-in power supply
• Multiple open communication protocols support; BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus Serial, EcoStruxue Web Services, Generic Web Services
• Dual Ethernet ports with built-in IP switch for greater architecture design flexibility
• Available in four models with different I/O point count and I/O mix for a wide range of plant or mechanical room equipment control applications
• Manual override options available
• Faster processor for superior performance
• SpaceLogic IP-IO Expansion Module support for extended I/O point count
• SpaceLogic Zigbee Adapter support for Zigbee wireless connectivity
• Supports local schedules, trends and alarms
• Customizable as-built input and output terminal labels and removablle terminal blocks
• SpaceLogic Operator Display support for viewing and managing BACnet points, schedules, alarms, and temperature setpoints in plant rooms
• MQTT IoT protocol support for publishing information to other systems.
• Compliance with BACnet® Advanced Application Controller (B-AAC) profile at protocol revision 14
• Compliance with BACnet® Building Controllers (B-BC) profile - the most advanced BACnet device profile.
• Ability to serve as a BACnet Broadcast Management Device (BBMD)
• Available as BIM objects in Autodesk Revit File format (rfa) and compatible with the latest edition of Autodesk Revit software.

• Powerful, compact, all-in-one design with built-in power supply and I/O
• Open building protocol support; it can natively communicate with two of the most popular standards for buildings: BACnet and Modbus.
• Flexibility with I/O points makes it suitable for a variety of HVAC applications and cost-effective across large deployments
• Increased equipment serviceability with the manual override option
• Efficient terminal management with customizable as-built input and output terminal labels
• Lower total installation costs due to a cost-effective, smaller form factor and all-in-one design
• Maximized energy savings with more complex applications in the controller using the SpaceLogic IP-IO Expansion Module
• SpaceLogic AS-B Controller is designed with fasteners for easy panel installation.

SpaceLogic AS-B Controller is suitable for small, medium and large control applications in commercial buildings:

• As part of an EcoStruxure BMS with a SpaceLogic AS-P or an Enterprise Server in large, complex installations
• As an all-in-one stand-alone controller for small-to-medium main plant room control applications: Central Heating and Cooling Systems, School Boiler Houses, Heat Exchanger Production, District Heating Schemes, Domestic Hot Water Systems
