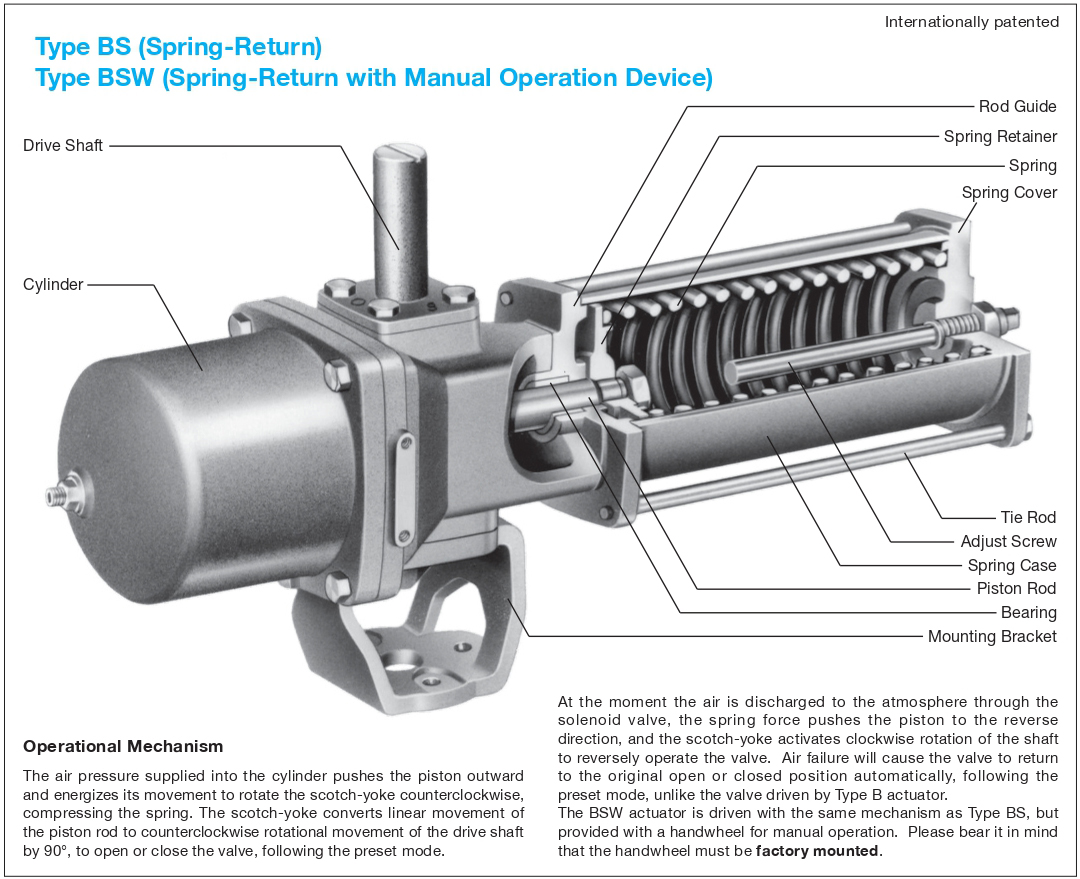

BS

FIGURE : BS
OPERATING TYPE : Spring Return for Butterfly and Ball Valve
OPERATING MEDIA :  Compressed instrument air
STANDARD OPERATING PRESSURE :  0.4 Mpa (60 psi) : Factory preset pressure
PRESSURE SUPPLY RANGE :  0.4 Mpa (60 psi) to 0.7 Mpa (100 psi)
STANDARD  DURABILITY :  100,000 cycles under moderate service conditions
HOUSING TEST PRESSURE :  0.97 Mpa (9.9 kgf/cm2 or 140 psi)
DRIVE SHAFT ROTATION :   100°C (when the stopper is fully relaxed)
ROTATION ADJUSTMENT RANGE :  5°C at each end
SERVICE TEMPERATURE RANGE :  -20°C to + 60°C (-4°F to 140°F)
OPTIONAL ACCESSORIES :

Limit Switch / Solenoid Valve
Air Filter-Regulator / Speed Controller
Quick Exhaust Valve / Valve Positioner
Silencer / Air Filter
Lubricator / Pressure Equalizing Valve

 DOWNLOAD MANUALS

 COMPATIBLE BALL VALVES :

 DOWNLOAD BS-10FCTB

 DOWNLOAD BS-10STBF

 DOWNLOAD BS-150SCTDZ / BS-150SCTDZM

 DOWNLOAD BS-10UTB / BS-10UTBM

 DOWNLOAD BS-150UTB / BS-150UTBM

 DOWNLOAD BS-10UTDZ / BS-10UTDZM

 DOWNLOAD BS-150UTDZ / BS-150UTDZM

COMPATIBLE BUTTERFLY VALVES :

 DOWNLOAD BS-10DJ / BS-10DJU / BS-10DJUE

 DOWNLOAD BS-PN16DJ / BS-PN16DJU / BS-PN16DJUE
