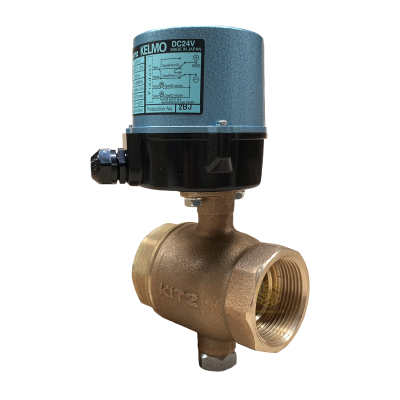

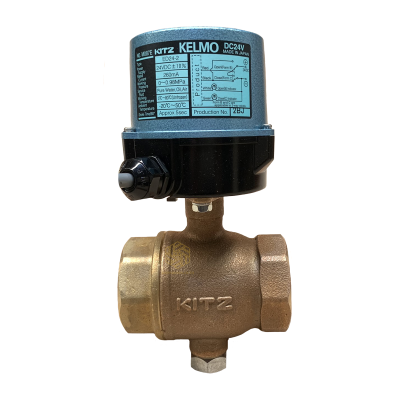

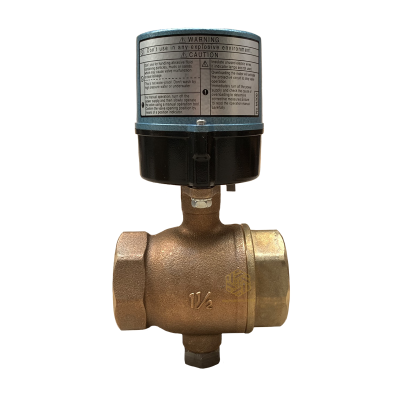

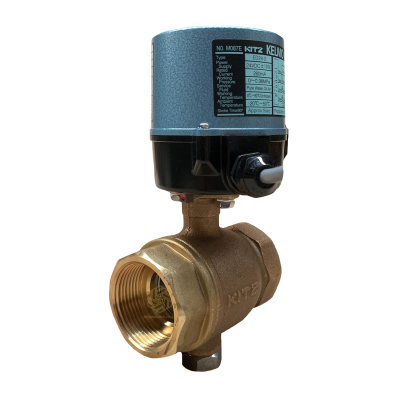

ED24-TE
10K CAST BRONZE BALL VALVES,WITH ELECTRIC ACTUATOR KELMO,REDUCED BORE,SCREWED ENDS.,END TO END:KITZ STANDARD,END CONNECTION:JIS B0203 (7),WALL THICKNESS:KITZ STANDARD,TEST STANDARD:KITZ STANDARD
āļŦāļĄāļ§āļāļŦāļĄāļđāđ :
KITZ VALVE
,
āļŦāļąāļ§āļāļąāļ/āļ§āļēāļĨāđāļ§āļŦāļąāļ§āļāļąāļ
,
ELECTRIC ACTUATOR
āđāļāļĢāļāļāđ :āļāļīāļāļāđ
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
FIGURE : ED24-TE
PRESSURE : JIS 10K
END CONNECTION : BS21
SIZE : 3/8 - 2
BODY : Bronze
BALL : Brass
BALL SEAT : PTFE
BORE (PORT) : Reduce Bore
ACTUATORS DETAILS
FUNCTION : DC (Basic Version)
OPERATION MEDIA : Power source 24V DC
ROTATION : 90° Bi - Directional
TEMPERATURE RANGE : -20°C ~ 50°C
AMBIENT CONDITION : All weather type (for outdoor use, avoid sunlight)
DOWNLOAD ELECTRIC ACTUATORS COMPACT BALL VALVES
