C-TNE

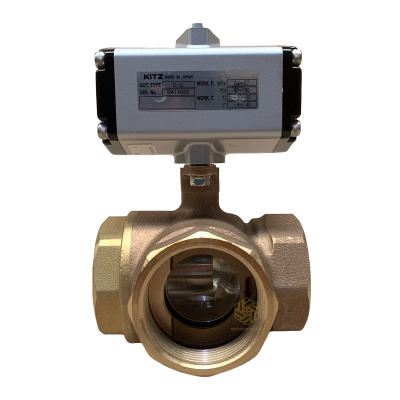

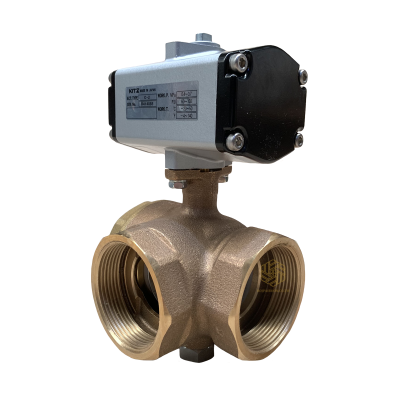

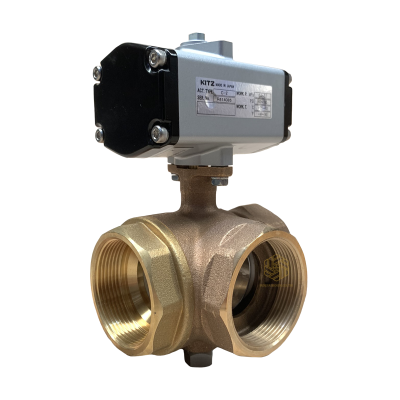

10K CAST BRONZE BALL VALVE SCREWED ENDS WITH PNEUMATIC ACTUATOR,3-WAY 2 SEAT L-PORT,REDUCED BORE,DOUBLE ACTING TYPE.,END TO END:KITZ STANDARD,END CONNECTION:JIS B0203,WALL THICKNESS:KITZ STANDARD,TEST STANDARD:KITZ STANDARD

ACTUATORS DETAILS
FUNCTION : Double Action
OPERATION MEDIA :  Instrumentation Air
ROTATION :  90°  Bi - Directional
TEMPERATURE RANGE :  -20°C  ~ 60°C  (FBS Type  -20°C  ~ 80°C)
AMBIENT CONDITION :  Indoor

  DOWNLOAD PNEUMATIC ACTUATORS COMPACT BALL VALVES

  DOWNLOAD MANUALS

  DOWNLOAD C-TNE
