20SLS
จำนวน
คำอธิบายสินค้าแบบย่อ
- TYPE : GATE VALVES
- FIGURE : 20SLS
- PRESSURE : JIS 20K
- END CONNECTION : BS21
- SIZE : 1/2 - 2
- BODY : Ductile Iron
- BONNET : Ductile Iron
- STEM : Stainless Steel
- DISC : Stainless Steel
แบรนด์: คิทซ์
รายละเอียดสินค้า

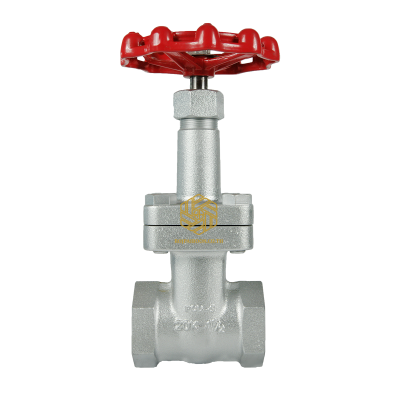

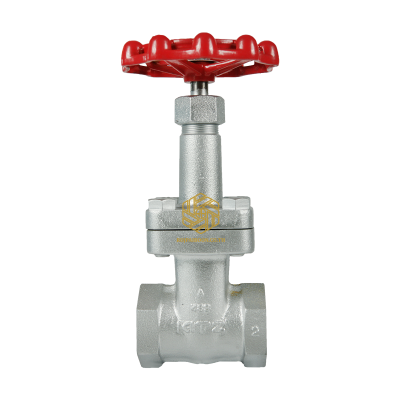

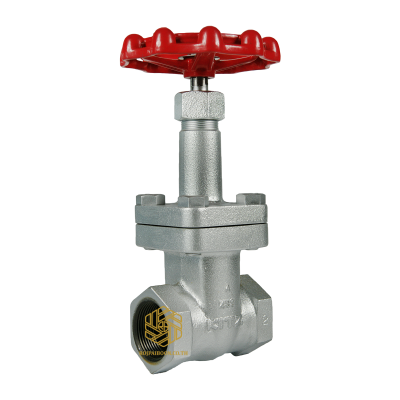

20K DUCTILE IRON GATE VALVE SCREWED ENDS,BOLTED BONNET , INSIDE SCREW.,END TO END:JIS B2051,END CONNECTION:JIS B0203,WALL THICKNESS:KITZ STANDARD,TEST STANDARD:KITZ STANDARD ,・Static water -10℃～+120℃：2.8MPa /・Steam, air , gas, oil, pulsing water -10℃～+120℃：2.5MPa
Bolted bonnet, Inside Screw
120ºC Static water 400 psi
220ºC Steam air, gas, oil 360 psi
300ºC Steam air, gas, oil 330 psi
350ºC Steam air, gas, oil 290 psi
