SpaceLogic™ Globe Valves & Actuators

Flexibility, speed and performance Our comprehensive collection of globe valve and actuators deliver fast, highly accurate and extremely flexible solutions for the most demanding of applications from chilled to hot water, including glycol applications.

รายละเอียดสินค้า

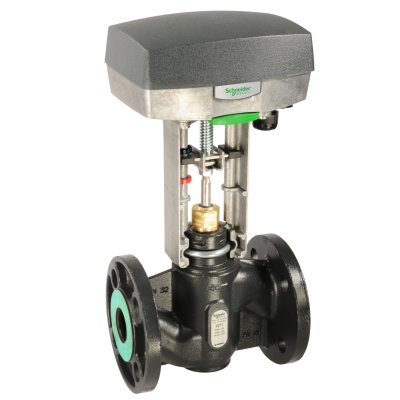

Discover SpaceLogic Globe Valves and Actuators.



Precise control for demanding applications
Designed to provide accurate fluid control in the most demanding applications, SpaceLogic Globe Valves and Actuators help reduce operating costs and optimize installation and maintenance procedures.

Select from threaded or flanged variants, as well as brass or stainless-steel trim options. Multi-signal actuators that connect to a Building Management System (BMS) provide even greater flexibility.



Benefits of SpaceLogic Globe Valves and Actuators

  • Energy efficiency
    Improves overall energy efficiency in hydronic applications with best-in-class precision and controllability for proper matching of the flow to the load.
  • Precision
    Patented Balanced Plug Technology Valve cuts through the incoming water flow with 90% less area than a conventional plug.
  • Control
    Delivers flexibility across multiple applications with end connectors that accommodate all pipe types and actuators with control signals like on/off, floating, and proportional.



Applications and Features



Air handling units
  • Crown plug design for exceptionally smooth low-flow control.
  • Very high differential pressure control, up to 800 kPa.
  • Super high rangeability up to 200:1.
  • Pre-bonded gasket is simple to assemble with no additional gaskets required.
  • Nodular iron construction for longer life and high corrosion resistance.
Rooftop units
  • Patented precision plug for high rangeability promoting efficient heat transfer.
  • Multiple Cv and fitting choices to match loads and piping.
  • Very low Cv models (as low as 0.1) for precise control of small and light load applications.
  • Availability of rebuild kit to ensure long operating life and reduce maintenance costs.
Chillers
  • High positional resolution accuracy paired with high rangeability.
  • Multi-signal control in all actuators reduces SKUs required and simplifies selection.
  • Manual override can be operated without disconnecting the power.
  • Feedback signal in all models; 3 or 4-wire electrical connection.
  • Indicators for visual feedback of stroke position.
  • Auxiliary switch options (integrated or optional for retrofit).
  • 2 x SPDT; 24 Vac or Vdc supply; 3 x cable gland entries (EU) / 2 x conduit gland entries (NAM).
District heating
  • The Forta actuator offers the best precision and controllability for district heating applications.
  • Control flexibility with Proportional, Floating, or PWM control options.
  • Auto-calibration provides precise control by scaling the input signal to match the exact travel of the valve stem.
