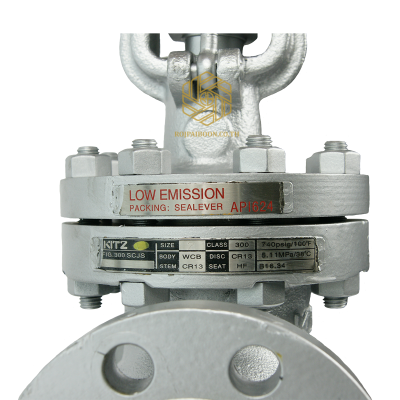

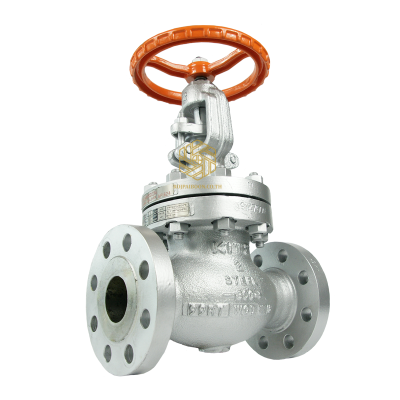

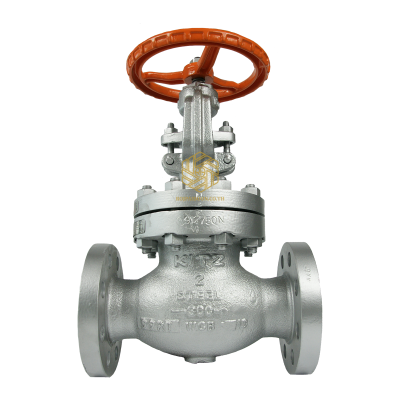

300SCJS/300SCJSY
CLASS 300 CAST STEEL GLOBE VALVE FLANGED ENDS,BOLTED BONNET, OUTSIDE SCREW & YOKE.,END TO END:ASME B16.10 CLASS 300,END CONNECTION:ASME B16.5 CLASS 300,WALL THICKNESS:API 600 CLASS 300,TEST STANDARD:API 598
āļŦāļĄāļ§āļāļŦāļĄāļđāđ :
KITZ VALVE
,
āļ§āļēāļĨāđāļ§āđāļŦāļĨāđāļāđāļŦāļāļĩāļĒāļ§
,
GLOBE VALVE
āđāļāļĢāļāļāđ :āļāļīāļāļāđ
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
TYPE : GLOBE VALVES
FIGURE : 300SCJS/300SCJSY
PRESSURE : CLASS 300
END CONNECTION : ASME B16.5
SIZE : 1 1/2 - 8
BODY/BONNET : A216 Gr. WCB
STEM : A182 Gr. F6a
DISC : Carbon Steel+13Cr / Carbon Steel +HF
BODY SEAT : Carbon Steel + HF
Trim 8
P-T Rating : ASME B16.34
DOWNLOAD CAST CARBON STEEL GLOBE VALVE
DOWNLOAD MANUALS
