10SRBF
Short Description
- TYPE : CHECK VALVES
- FIGURE : 10SRBF
- PRESSURE : JIS 10K
- END CONNECTION : JIS B2239
- SIZE : 1 1/2 - 10
- BODY : Ductile Iron
- COVER : Ductile Iron
- STEM : -
- DISC : Stainless Steel
Brands: KITZ
Product Specification

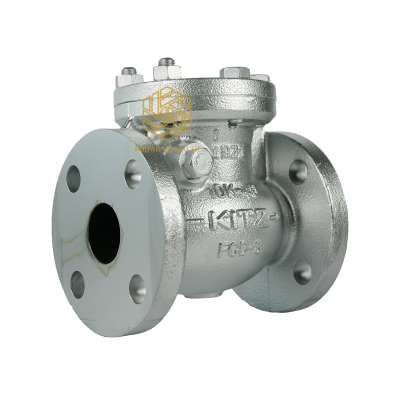

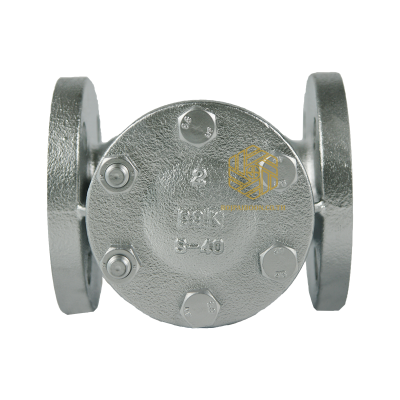

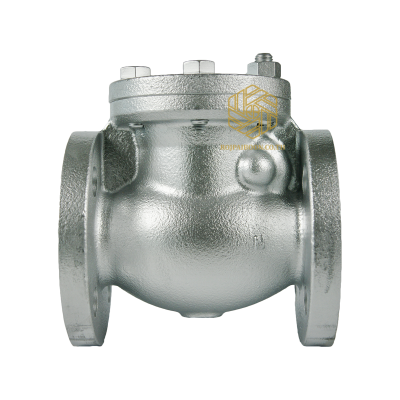

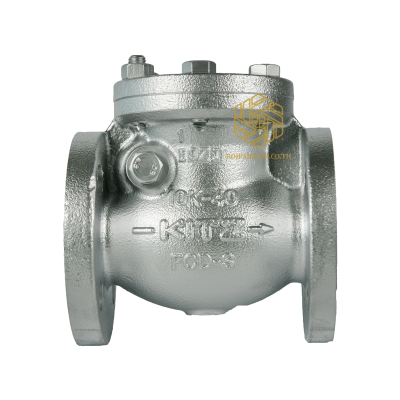

10K DUCTILE IRON SWING CHECK VALVE FLANGED ENDS,BOLTED COVER, FLAT FACE FLANGED ENDS.,END TO END:JIS B2002,END CONNECTION:JIS B2239 10K,WALL THICKNESS:KITZ STANDARD,TEST STANDARD:KITZ STANDARD ,・Static water -10℃～+120℃：1.4MPa /・Steam, air , gas, oil, pulsing water -10℃～+120℃：1.2MPa
Swing Type, Bonnet Cap
120ºC Static water 200 psi
220ºC Steam air, gas, oil 175 psi
300ºC Steam air, gas, oil 145 psi
DOWNLOAD 10K SWING CHECK VALVE
