PIPING SYSTEM
Last updated: 26 Aug 2026
1148 Views

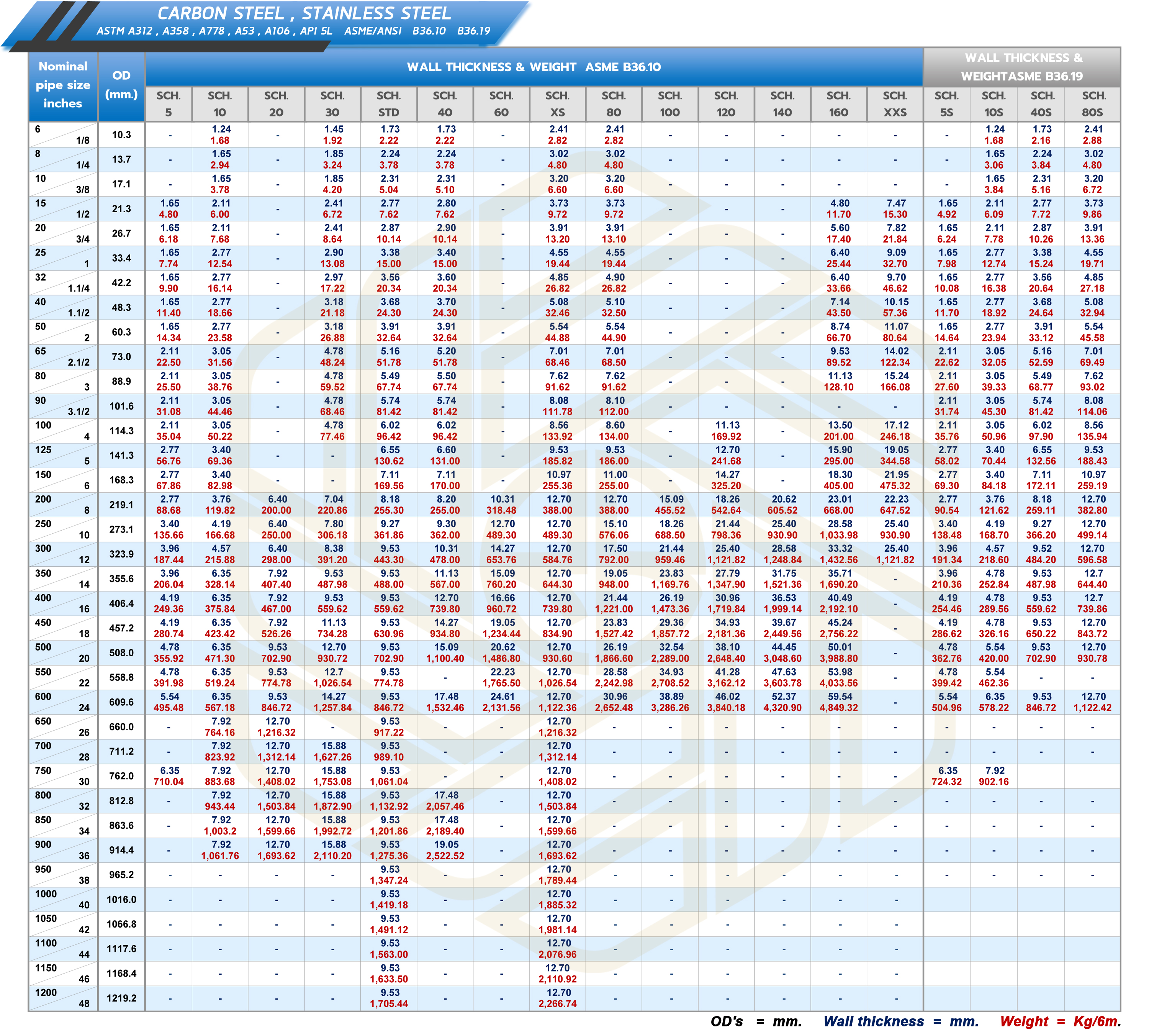

CARBON STEEL, STAINLESS STEEL SEAMLESS/WELDED PIPE WALL THICKNESS
ASME/ANSI B36.10 , B36.19
Pipe Size & Pipe Wall Thickness
Iron Pipe Sizing (IPS) has determined the pipe size with reference to the approximate internal diameter of the pipe. The pipe thickness is only one thickness per pipe size. It is called Standard (STD), which makes the outer diameter of each size of pipe a constant value without variation.
In accordance with the standards set by the United States.
ASME B 36.10 Steel Pipe (Carbon Steel Pipe)
ASME B 36.19 Stainless Steel Pipe
