EVA1RFKES
Description

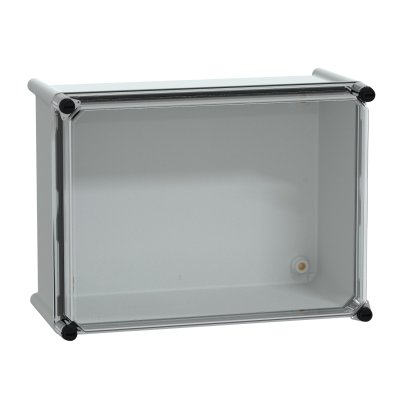

This EVlink Pro AC Metal accessory is an enclosure used to install protection devices inside the metallic enclosure. Depending on the protection chosen to be embedded into the EVlink Pro AC Metal enclosure, the installation of a Thalassa enclosure in the metallic kit may be necessary. The IP degree of protection is IP66. It can be used with single-phase or three-phase devices. The enclosure is equipped with 1 Telequick mounting plate, 2 DIN rails with a length of 240mm and 4 fixing brackets. The cables can enter via 2 M32 cable glands and 1 M12 one. The cable cross section id 25mm² up to 35mm². Its dimensions are (W) 270mm x (H) 360mm x (D) 180mm. Its product weight is 3.4kg. The IK degree of protection is IK09. The ambiant air temperature for operation is comprised between -30°C to 70°C.
Specifications
| Main | |
| Range | EVlink |
| product name | EVlink Pro AC Metal |
| Product or component type | Enclosure |
| Range compatibility | EVlink EVlink Pro AC EVB3 charging station |
| Poles description | 3P + N |
| Mounting mode | Assembled |
| Localisation on device | On lower part |
| rated supply voltage | 380...415 V AC 50/60 Hz 220...240 V AC 50/60 Hz |
| Earthing system | TT TN-S TN-C-S IT Compatible IT with additional isolation transformer on the power supply |
| Complementary | |
| Provided equipment | 1 mounting plate 2 DIN rail 4 fixing bracket 3 cable gland |
| DIN rail length | 240 mm |
| Mounting plate description | Telequick perforated |
| Cable entry number | 2 cable gland for M32 1 cable gland for M12 |
| Cable cross section | 2535 mm² |
| Height | 360 mm |
| Width | 270 mm |
| Depth | 180 mm |
| Net weight | 3.4 kg |
| Environment | |
| IP degree of protection | IP66 |
| IK degree of protection | IK09 |
| Ambient air temperature for operation | -30...70 °C |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 20.000 cm |
| Package 1 Width | 29.000 cm |
| Package 1 Length | 38.000 cm |
| Package 1 Weight | 3.266 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 109.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 154.000 kg |
