PowerLogic™ HDPM6000 High-Density Metering System

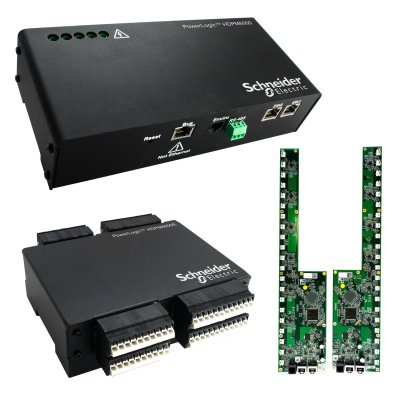

Discover the PowerLogic HDPM6000 high-density metering system

Gain accurate monitoring at every circuit
Improve your power quality and avoid downtime by monitoring power problems at the circuit level with PowerLogic HDPM6000. Our high-density power metering system; provides visibility across your entire electrical infrastructure with data to achieve energy accountability and regulatory compliance.

Modular, scalable, and adaptable to almost any situation, its perfect for main circuits and branch circuits in any electrical panel or busway system.

Benefits

• Efficient
  Improve energy efficiency, reduce waste and lower utility bills with precise energy usage tracking. Optimize operations to save time and reduce errors by enabling automatic reports.
• Reliable
  Capture voltage disturbances and assess harmonics to maximize asset performance, reduce equipment damage, avoid device malfunctions and prevent power disruptions.
• Flexible
  Enjoy a quicker installation with minimal integration costs thanks to the modular and innovative design thats also easily scalable and adaptable for a range of applications.

Applications

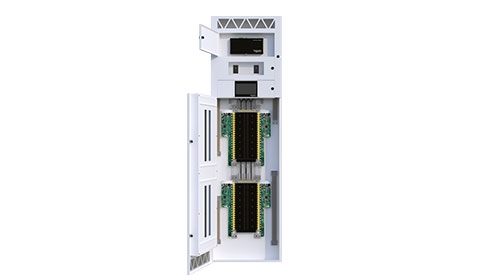

New panelboards

• Enable network management in new installations
  PowerLogic HDPM6000 panelboard metering solutions are intended for new construction when energy and power quality monitoring is required down to the branch circuit level.

  They are well-suited for panelboards, power distribution units (PDUs), and remote power panels (RPPs). The head unit measures 3-phase power feeding the panelboard, while the metering modules measure power on all the outgoing branch circuits. Each head unit can support a daisy chain of up to 8 (4 pairs) panelboard metering modules for a total of 168 circuits.

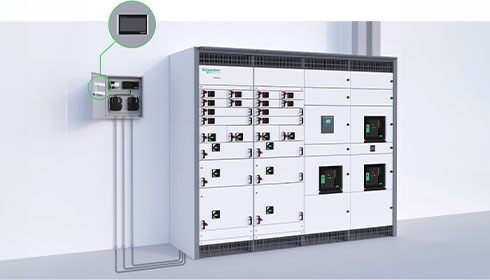

Existing panelboards

• Retrofit into any type of electrical panel
  PowerLogic HDPM6000 retrofit metering solutions are an effective way to achieve power quality monitoring and high-density metering for any type of electrical panel that lacks metering capabilities.

   Main, feeder, and branch-circuit metering can easily be added without any mechanical or electrical design changes to the existing panels. Available in three options: 24-, 42- and 84- circuit. Each head unit can support up to 192 circuits from downstream retrofit metering modules.

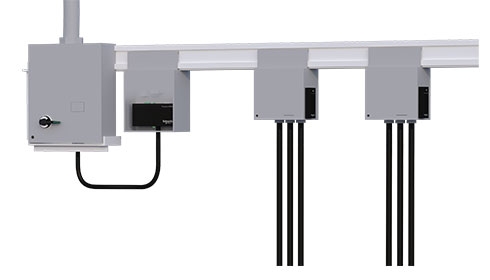

Busways

• Add metering to any busway configuration
  PowerLogic HDPM6000 busway metering solutions are engineered for new construction or retrofit when energy and power quality monitoring are needed on every circuit feeding load from a busway distribution system.

  The head units monitor the power feeding each busway trunk, while busway metering modules monitor the outgoing power from each tap box. Available in both 4- and 8-circuit modules, each with two Ethernet ports for connection in a daisy chain. Each head unit can support up to 192 circuits from downstream busway metering modules.

Perfect for your business

• Commercial buildings
  Smart buildings require flexible and adaptable metering solutions as their needs change. They also need IoT-connected capabilities to adapt to changing requirements in power-critical facilities. With a modular platform approach to minimize integration costs, start-up time and operational expenses, PowerLogic HDPM6000 meters provide insight, accuracy and results. The platform supports standard open protocols, helping integrate connected products and create resilient, future-ready buildings. Perfect for commercial malls, office buildings and multi-residential sites.
• Data centers
  In an environment where one hour of downtime can cost millions, data centers cannot afford to neglect power availability, yet also face mounting pressure to make wise use of their energy dollars while still maintaining 24/7 uptime. The PowerLogic HDPM6000 power metering system can help manage these demands by providing utility-grade data at the branch circuit on busway systems, panel boards, remote power panels (RPPs), power distribution units (PDUs), switchgear, and distribution panels. With power and energy data on branch circuits and mains in a PDU or RPP, HDPM6000 provides an accurate vision of your capacity, energy use, and reliability.
• Healthcare
  Healthcare facilities require extraordinary reliability from their power systems. Its crucial for ensuring a safe, healthy hospital environment. Unplanned outages threaten patient safety, damage reputations and create financial strain. The PowerLogic HDPM6000 power metering system can help reduce the number and duration of unplanned outages by analyzing and interpreting power quality data, which can be used to improve system-wide performance and help determine the causes of malfunction or downtime. The platform allows you to compare power usage across circuits to discover trends over time.
• Power critical industries
  Every power network has unique requirements, and power critical facilities need to keep the power on. In industrial sites with a high density of circuits, the PowerLogic HDPM6000 power metering system has the flexibility you need to easily tailor to suit specific or dynamic installations. Analyze power quality data to improve operational efficiency and accurately correlate circuit- and process-specific operational expenses, identify and target efficiency measures and increase productivity. Utilize PowerLogic HDPM6000 meters to harness industry-leading monitoring capabilities for maximum power reliability.
