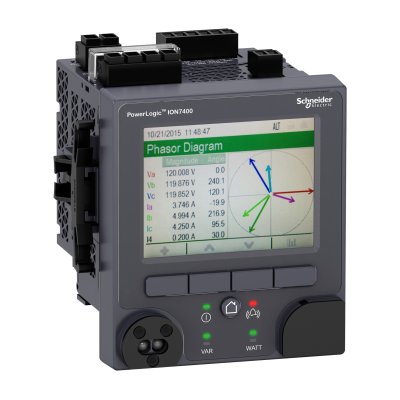

PowerLogic™ ION7400 Power Quality Meters

Discover PowerLogic ION7400 power quality meters

Measure. Understand. Act.
Designed to monitor and analyze power quality and energy consumption in utility feeder applications, PowerLogic ION7400 is a high-performance revenue grade meter with bill verification and totalization, load-shedding, and compliance monitoring features. With embedded, patented ION technology, its easily customizable for all applications.

Benefits of PowerLogic ION7400 power quality meters

• True reliability
  Delivers precise, trustworthy and cyber-resilient information compliant with most international standards for power quality monitoring and revenue billing.
• Tangible results
  Offers practical, simple-to-understand power quality data from across your infrastructure with actual outcomes that enhance efficiency and reduce downtime.
• Wide versatility
  End users and system integrators can easily construct unique applications, evolve, and adapt devices to changing business realities thanks to a modular block-oriented programming architecture.

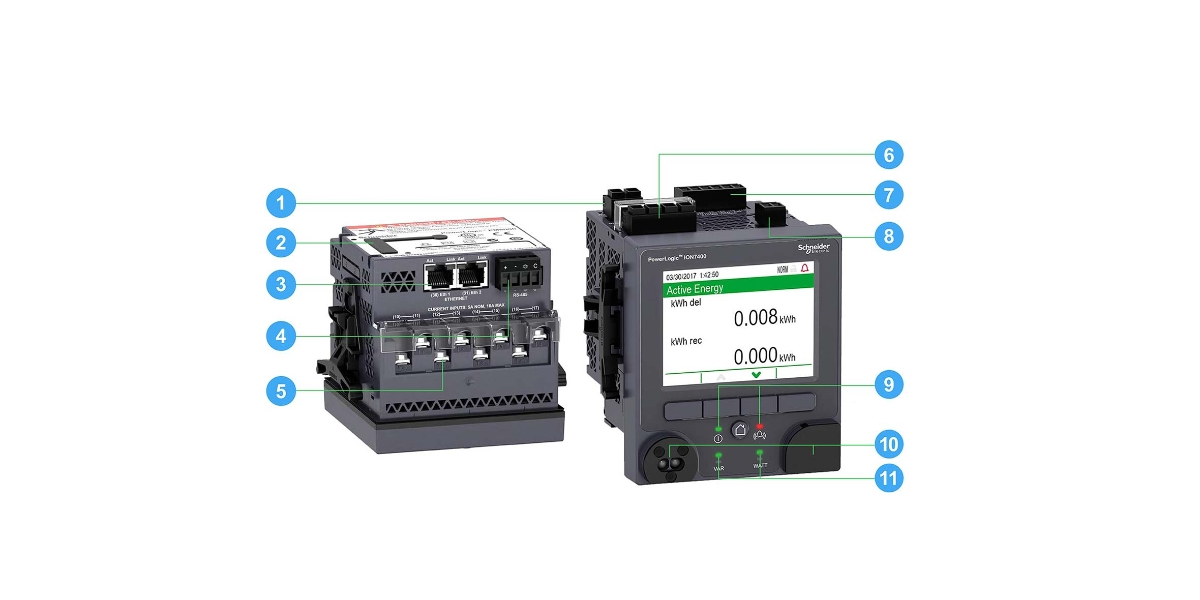

Features

1. Control power : Auxiliary power available in two options: standard supply or low-voltage DC supply.

2. Expansion ports : Connect to four modules to support digital I/O, analog I/O, or additional communication modules such as fiber ethernet.

3. Dual port ethernet : Enable configuration changes and extract data to interpret and visualize the information provided by the meter.

4. Serial port : Make quick configuration changes and retrieving energy data via the RS-485 Serial communication port.

5. Current inputs : Measure power, energy, and instantaneous values.

6. Voltage input : Measure power, energy, and instantaneous values.

7. Digital inputs : Monitor the status of switches or pulse count for totalization applications.

8. Digital outputs : For switching applications, demand synchronization, and energy pulsing.

9. Alarm/status LEDs : Notifications for active alarm conditions.

10. Front panel communications : USB and Optical Port for in-field communication to make quick configuration changes and retrieve energy data.

11. Calibration LEDs : Verify and validate accuracy in-field through customizable front panel IR/LED for kWh and KVARh pulsing.
