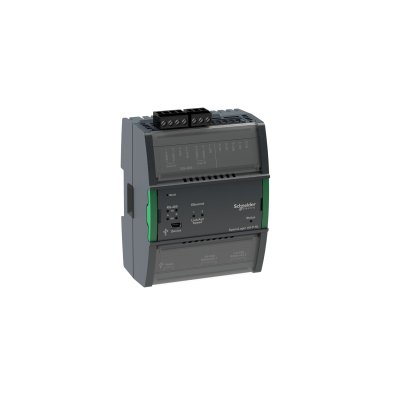

SpaceLogic™ Central I/O Module

Next-generation central I/O module

The SpaceLogic Central I/O Module connects directly to the SpaceLogic AS-P Server to provide input and output points for the centralized control of large mechanical systems in a plant or equipment room. Working with the automation server as part of a modular system, it delivers power and communications on a common bus for scalable custom configurations.

Benefits of SpaceLogic Central I/O Module

• Flexible
  Supports scalable custom configurations that can be tailored to specific buildings plant room control needs without significant reconfiguration.
• Comprehensive
  Offers a wide range of input and output point mixes that help to meet application requirements and adapt to changing control needs.
• Simple
  Makes installation easier with plug-and-play functionality and direct connection to the automation server, minimizing installation costs, labor and deployment time.

Features

Versatile models

• Seventeen standard models with versatile onboard I/O point mix for a wide range of applications.
• All models are UL 864 smoke control-compliant for use in smoke control systems.
• Up to 32 modules can be connected to one automation server.

• The patented two-piece design allows site wiring with the terminal base before installation of the electronics.
• The input and output terminals of each module are accessible for maintenance without removing the module from its terminal base.
• Auto addressing of the modules eliminates the need for DIP switches and commission buttons on the modules, which significantly reduces engineering and maintenance time.

• Modules are designed to be hot-connectable to the terminal base and hot-swappable to ensure continuous power and communication during service operations.

• Input modules use 16-bit analog to digital converters for high-precision control applications.
• Output modules include Hand/Off/Auto (HOA) switches to provide override control of the outputs.
• The position of the HOA switch can be read through the EcoStruxure Building Operation WorkStation software, enabling more precise monitoring and control.
