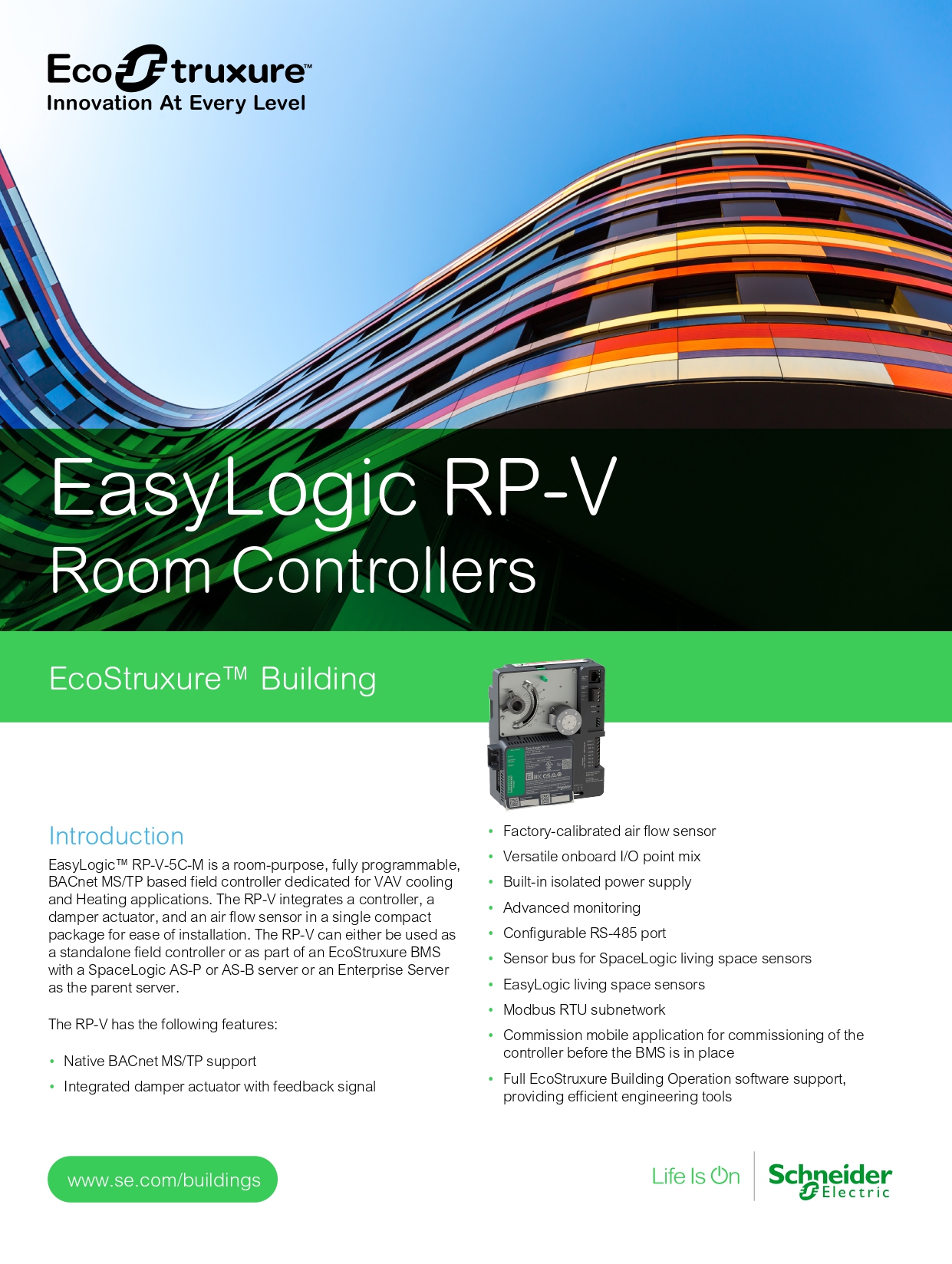

EasyLogic™ RP-V Controller

Discover EasyLogic RP-V Controllers

Easy solution for basic VAV installations
Enjoy peace of mind with a simple design. The EasyLogic RP-V Controller supports fundamental HVAC applications with more effective integration and commissioning to help save time and resources. This BACnet MS/TP-based variable air volume controller provides accurate dynamic temperature control for comfortable and energy-efficient spaces.

Benefits of EasyLogic RP-V Controllers

• Easy installation
  Maintain productivity during renovations with simple, non-intrusive installation. Adapt to the most specific building needs using freely programmable design.
• Intuitive operations
  Robust quality enables system reliability without sacrificing occupant comfort, while the simplicity of the design ensures the right fit for standard HVAC architectures.
• Scalability
  Unlock enhanced flexibility and efficient engineering thanks to seamless integration with EcoStruxure Building Operation or another 3rd party BMS.
• Energy efficiency
  Adjusts HVAC settings based on accurate temperature control to reduce energy peaks and help meet green building standards like LEED and BREEAM.

Features

• Simple design
  The integrated damper actuator allows for simplified installation directly over the damper shaft with no need for separate installation, wiring and positioning of the damper motor.
• Fully programmable
  Both script and function block programming options are available. One configurable RS-485 port can be programmed to support one of the two different types of networks: sensor bus or Modbus.
• Universal I/O points
  I/O count and type mix match a wide variety of VAV applications. The universal I/O points are highly flexible and can be configured as either inputs or outputs, creating an ideal solution for any mix of temperature, pressure, flow, status points and similar point types in a building control system to support a wide range of devices.
• Advanced monitoring
  Up to four sensors can be connected for enhanced measurement and control. Native support for local trends, schedules and alarms enable local operations when the controller is offline or used in standalone applications.
• Built-in isolated power supply
  The power input, designed to accommodate 24 VAC input power, is galvanically isolated from the electronics, enabling power to be supplied from a centralized source.
