SpaceLogic™ Living Space Analog & Protocol Sensors

Discover SpaceLogic Living Space Analog and Protocol Sensors

Redefining indoor air quality management
SpaceLogic Living Space Analog and Protocol Sensors are available with optimum and medium housing types to fit a wide range of application and budget requirements. Measuring temperature, humidity, carbon dioxide (CO2), volatile organic compounds (VOCs), and particulate matter (PM), these flexible multi-sensors are compatible with all building management systems (BMS) and offer easy integration with 3rd party systems with open protocols through BACnet and Modbus.

Benefits of SpaceLogic Living Space Analog and Protocol Sensors

• Simplification
  PM replaceable module allows sensor replacement without changing the whole SLA or SLP sensor. Screwless terminal block wiring enables 50% faster connection time.
• Resilience
  EcoStruxure Building Operation (EBO) offset feature allows internal adjustment to counterbalance settings being affected by sensor location such as a wall in direct sunlight.
• Efficiency
  Performance analytics provide critical data for troubleshooting enabling efficient facility management and better occupant comfort. Better visibility of PM and CO2 levels with stoplight indicators on touchscreen models.

Features

• Ability to measure temperature, humidity, CO2, VOCs and PM
• Compliance with multiple standard requirements
• Enables LEED and WELL certifications​

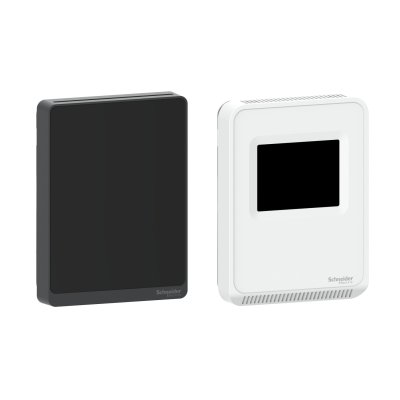

• Design fitted to your needs thanks to optimum and medium range housing with blank LCD and touchscreen models in white and black
• Adjustability with a choice of user interface options for both analog and protocol models

• Navigation is efficient and quick due to improved touchscreen operation with a digital main screen and menu status
• Configurable screen/button lock and display timeout
• A flexible multi-sensor platform for use with BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, or 0 to 10Vdc outputs

• 115mm in height (4.5 inches), 85mm (3.3 inches) in width, 24mm (.9 inches) in depth to easily fit in various spaces (33mm (1.3 inches) in depth for PM Series)
• Display resolution of 240 X 300 pixels and a touchscreen display size of 2.4 inches, LCD of 2.05 inches, to ensure the best possible user experience
