RF
Short Description

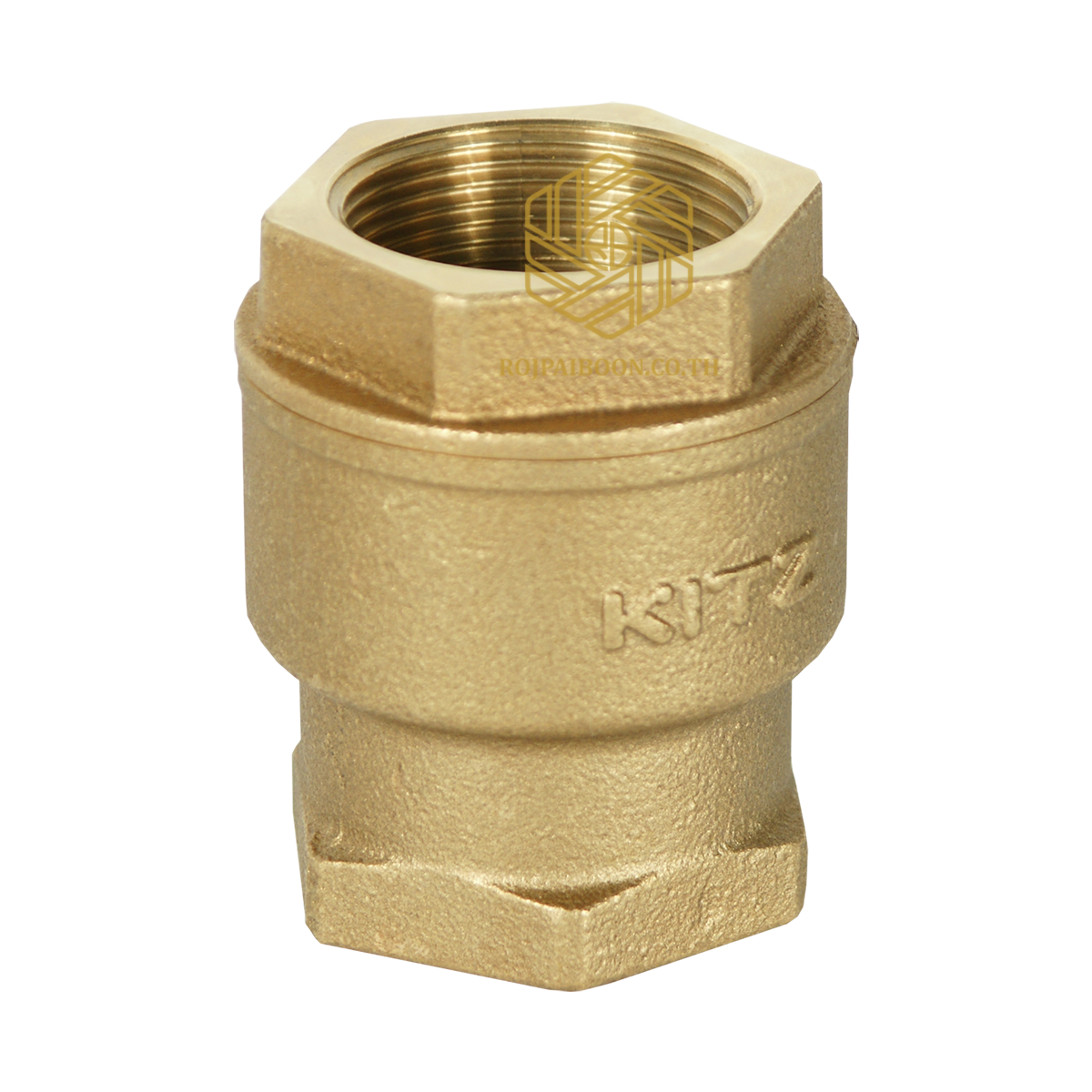

10K CAST BRONZE,LIFT CHECK VALVES,SCREWED CAP,SCREWED ENDS.,END TO END:KITZ STANDARD,END CONNECTION:JIS B0203,WALL THICKNESS:JIS B2011,TEST STANDARD:KITZ STANDARD ,・Static water -29～80℃：1.4MPa / ・Pulsing water -29～80℃：1.0MPa
Brands: KITZ
Product Specification
TYPE : CHECK VALVES
FIGURE : RF/AKAF
PRESSURE : 10K
END CONNECTION : BS21
SIZE : 3/8 - 3
BODY : Cast Bronze
BALL / DISC : NBR
SEAT : -
CAP : Cast Bronze
Lift Type (Spring)
W.O.G. non- shock 250 psi
Soft Seated Disc

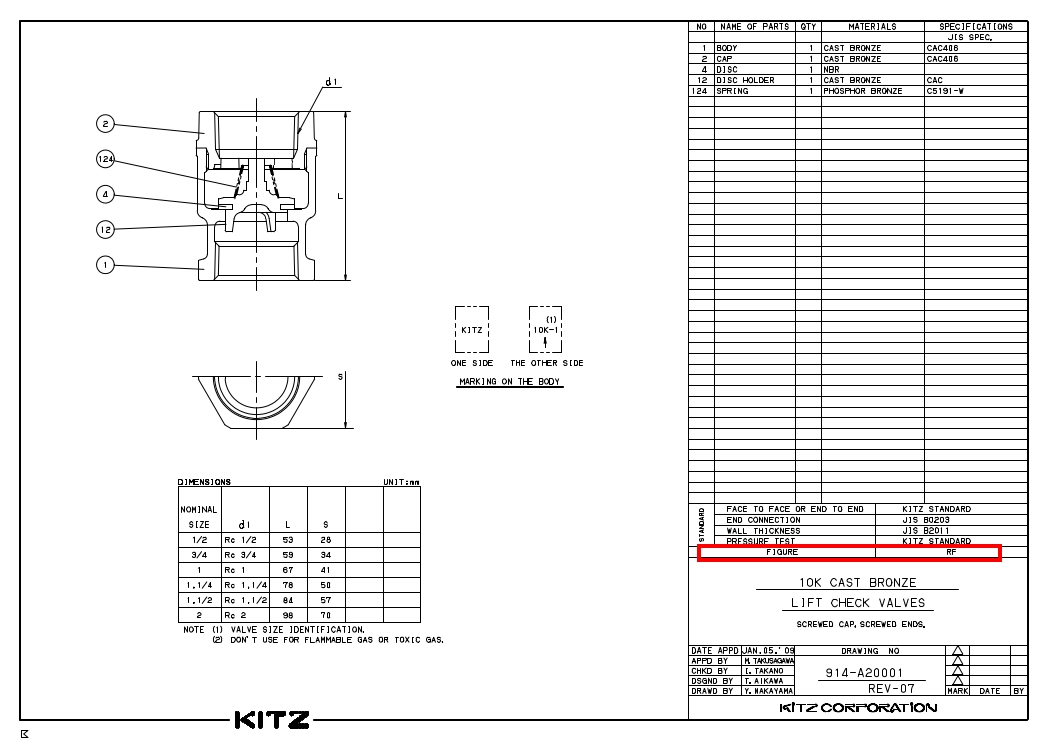

DOWNLOAD BRONZE LIFT CHECK VALVE
