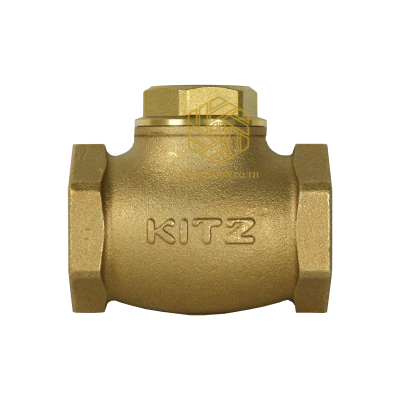

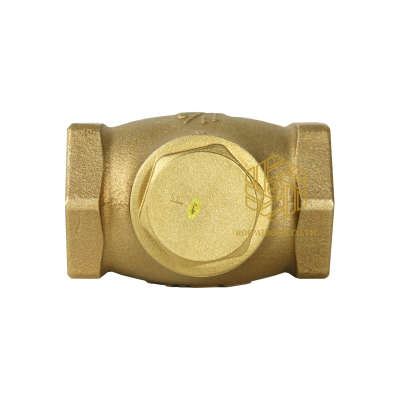

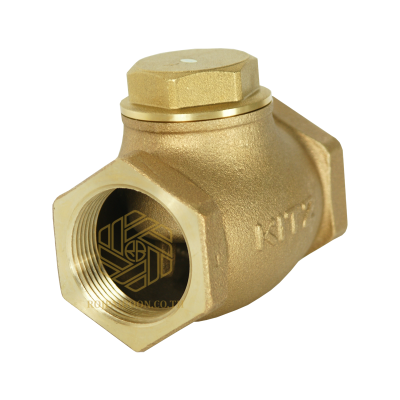

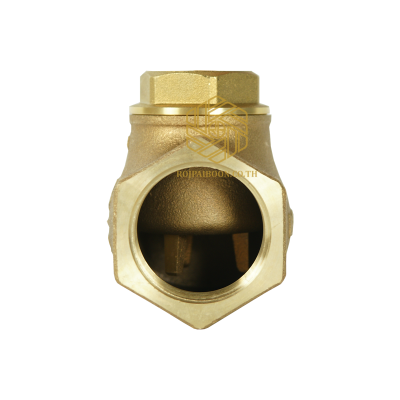

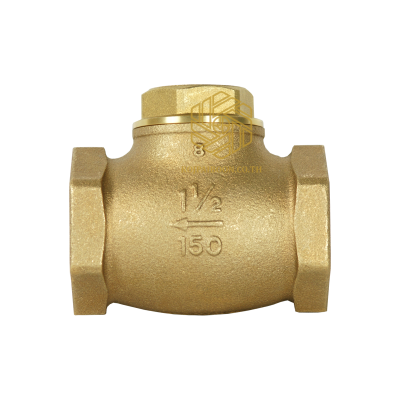

F/AKF
Short Description
- TYPE : CHECK VALVES
- FIGURE : F/AKF
- PRESSURE : CLASS 150
- END CONNECTION : BS21 / NPT
- SIZE : 3/8 - 3
- BODY : Cast Bronze
- BALL / DISC : Cast Bronze
- SEAT : -
- CAP : Forged Brass*
Brands: KITZ
Product Specification
CLASS 150 CAST BRONZE,LIFT CHECK VALVES,SCREWED CAP,SCREWED ENDS.,END TO END:KITZ STANDARD,END CONNECTION:JIS B0203,WALL THICKNESS:KITZ STANDARD,TEST STANDARD:KITZ STANDARD ・Static water -29～120℃：1.6MPa（3/8B～2B） / ・Static water -29～120℃：1.37MPa（21/2B・3B） / ・Steam(183℃)：0.98MPa
Lift Type
W.O.G. non- shock 300 psi,
Saturated steam pressure 150 psi
*2 1/2 - 3 Cast Bronze
DOWNLOAD BRONZE LIFT CHECK VALVE
